1″ & 1 1/2″ Impact Wrenches
ApplicationsSpecificationsKey FeaturesBenefitsCatalogueRequest a Quote
- LCV/HCV trucks and bus service station, industrial assembly lines, construction industries, Earth moving equipment servicing.
| Model | Square Drive (inch) | Bolt Size | Clutch Mechanism | Working Torque | Max. Torque | Net Weight | Air Inlet in – NPTF | Min.Hose Size |
|---|---|---|---|---|---|---|---|---|
| Nm | Nm | Kg | ||||||
| SP 1190P | 1 | M32 | Single Dog | 200 - 1350 | 220 | 9 | 1/2 | 1/2 (13) |
| SP 1191 | 1 | M25 | Single Dog | 280 - 1000 | 1650 | 5.5 | 3/8 | 1/2 (13) |
| SP 5000GE | 1 | M50 | Single Hammer | 280 - 1900 | 2700 | 17.3 | 1/2 | 1/2 (13) |
| SP 1193GE6 | 1 | M38 | Pinless Hammer | 280 – 2100 | 2100 | 13 | 1/2 | 1/2(13) |

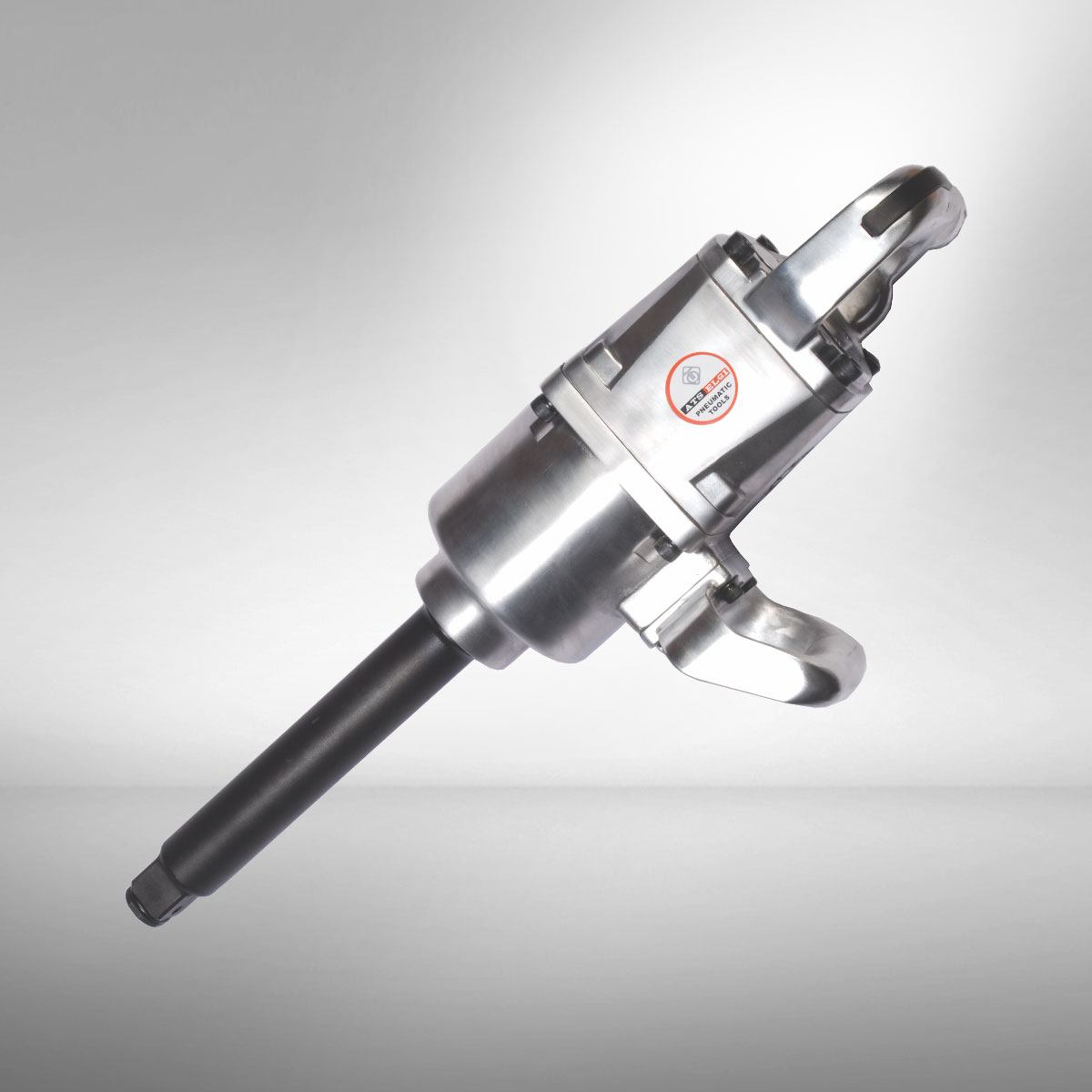

| JAI 6276L | 1 | M38 | Twin Dog | 280 – 1800 | 2439 | 12.2 | 1/2 | 3/4(19) |
- Ergonomic Design.
- Compact.
- Built-in power regulator.
- Liver type reverse switch.
- Positive action trigger.
- 3-piece housing.
- Comfortable grip and optimal distributions of weight.
- Handy to operate.
- Easy torque adjustment.
- Easy to operate.
- Precise speed control.
- Enables easy and quick servicing.
