CATALYTIC CUTTER
The catalyst converter is regarded as the most profitable part of an end-of-life vehicle. The SEDA Catalytic Cutter removes them in just a few seconds without requiring great strength and without damaging it.
The SEDA Catalytic Cutters are the optimal solutions for removing catalysts and exhaust systems. Weber Hydraulic have improved their devices for the specific requirements of recycling companies in conjunction with SEDA offering many sizes and solutions for today‘s operations.

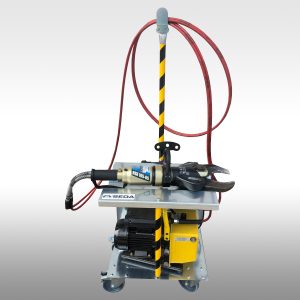

Our optional mobile stand 360° with catalytic converter catchment tray enables easy transport of the cutter and the motor in order to facilitate the usage significantly and prevent any injuries or damages!
BenefitsSpecificationsCatalogueRequest a Quote
- Compact design
- Strong cutting power
- Optimized cutter profile with special cutting notches
- Easy to replace blades
- Battery powered Cutters working on standard M28 Milwaukee batteries
- (Optional) mobile stand available
| RSX105 | RS130 | RSX165 | RSU180 Plus | RSU210 Plus | |
|---|---|---|---|---|---|
| Opening width | 105 mm | 130 mm | 165 mm | 180 mm | 210 mm |
| Cutting force | 290 kN | 480 kN | 642 kN | 903 kN | 1.050 kN |
| Max. Cutting cap | Ø 22 mm | Ø 26 mm | Ø 38 mm | Ø 35 mm | Ø 43 mm |
| Nominal pressure | 70 MPa | 55 MPa | 70 MPa | 70 MPa | 70 MPa |
| Test pressure | 84 MPa | 70 MPa | 84 MPa | 84 MPa | 84 MPa |
| Weight | 9,3 kg | 15,4 kg | 16,3 kg | 16,9kg | 19,8 kg |
| Order number Set | L-50446 | L-50335 | L-50349 | L-50425 | L-50426 |
