DISMANTLING TILTING LIFT

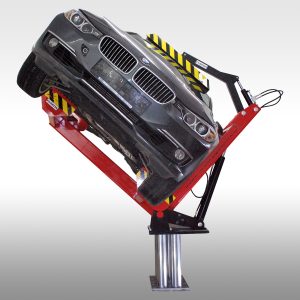

The SEDA TiltingLift TL-1 1800 is a underfloor-TiltingRamp with a special lifting feature. This system moves the car, not the worker.

It is easy to place a car with a forklift on the system. Than a hydraulic safety arm fixes the vehicle. The fixing arm can be adapted by various optional plug-in devices for all popular car models.

Afterwards the car is ready to turn 90° in order to help a worker to stand upright and work on the car bottom easily.

Furthermore it is possible to lift the car up to 1800 mm.

BenefitsSpecificationsCatalogueRequest a Quote
  • For easy and ergonomic working on car bottom
  • Underfloor installation
  • Steplessly variable 90° rotation
  • Available with llifting height 600 or 1800 mm
  • Also available without lifting feature as a ramp
  • Hydraulic control system
  • Rugged and robust
Control system hydraulic
Lifting height up to 1800 mm
Load capacity 4.000 kg
Engine Power 3 kW
Power supply 400 V
Oil filling quantity 13,4 Liter
Lift 1.5 x 2.6 x 2.5 m
Required space 6.0 x 6.0 x 2.9 m
