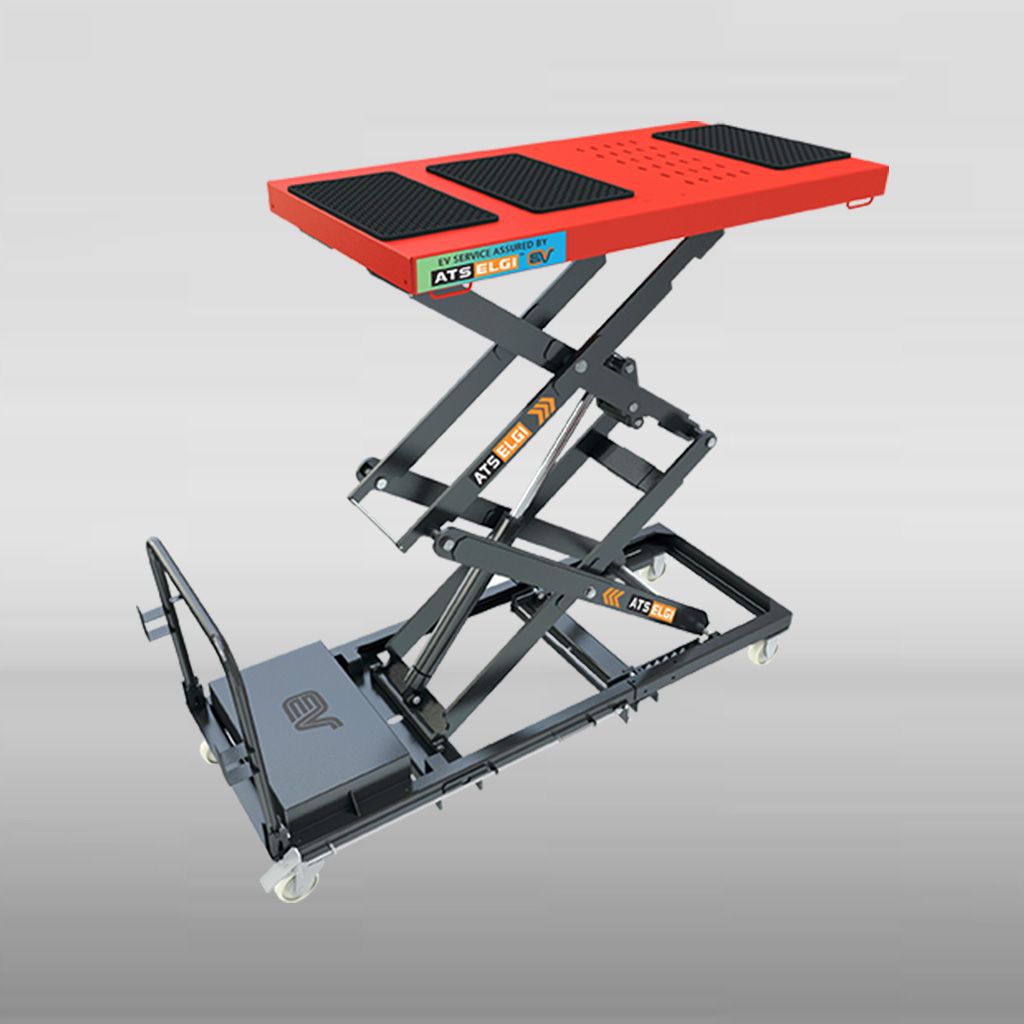

EV BATTERY LIFT
ATS ELGI introduce new EV – Battery Lift – 1.0T which is suitable for safe removal and installation of battery pack in Electric Vehicles & it has been designed for this exclusive purpose
Model: EV - BATTERY LIFT
Product FeaturesApplicationSpecificationsCatalogueRequest a Quote
- Double Scissors Lift with auto ratchet guided lock
- Very Low minimum height for easy Battery Transfer
- Wider Platform to handle Large Battery Pack
- Dual Purpose Handling: Battery / Drive Chain Transfer
- Foot Operated Mechanical Lock release
- Portability, Single Remote Operations (Hydraulic UP, DOWN)
- Suspended Horizontal Power pack
- Lesser footprint – Space Saving
- Top Platform X, Y Sliding Feature
Suitable for: EV – Passenger Vehicle
- Easy removal of battery pack & installation
| Lifting Capacity (kg) | 1000 |
| Max. Lifting Height (mm) | 1800 |
| Min. Lifting Height (mm) | 350 |
| Platform Size (LxW)(mm) | 1500 x 800 |
| Oil grade | ATS ELGI Hoist Lube |
| Oil tank capacity (Litres) | 5 |
| Motor Power* | 1.5 kW, 2 HP, 1 PH |
| Power Supply | 230 V / 50 Hz |
| Safety Mechanism | Mechanical |
