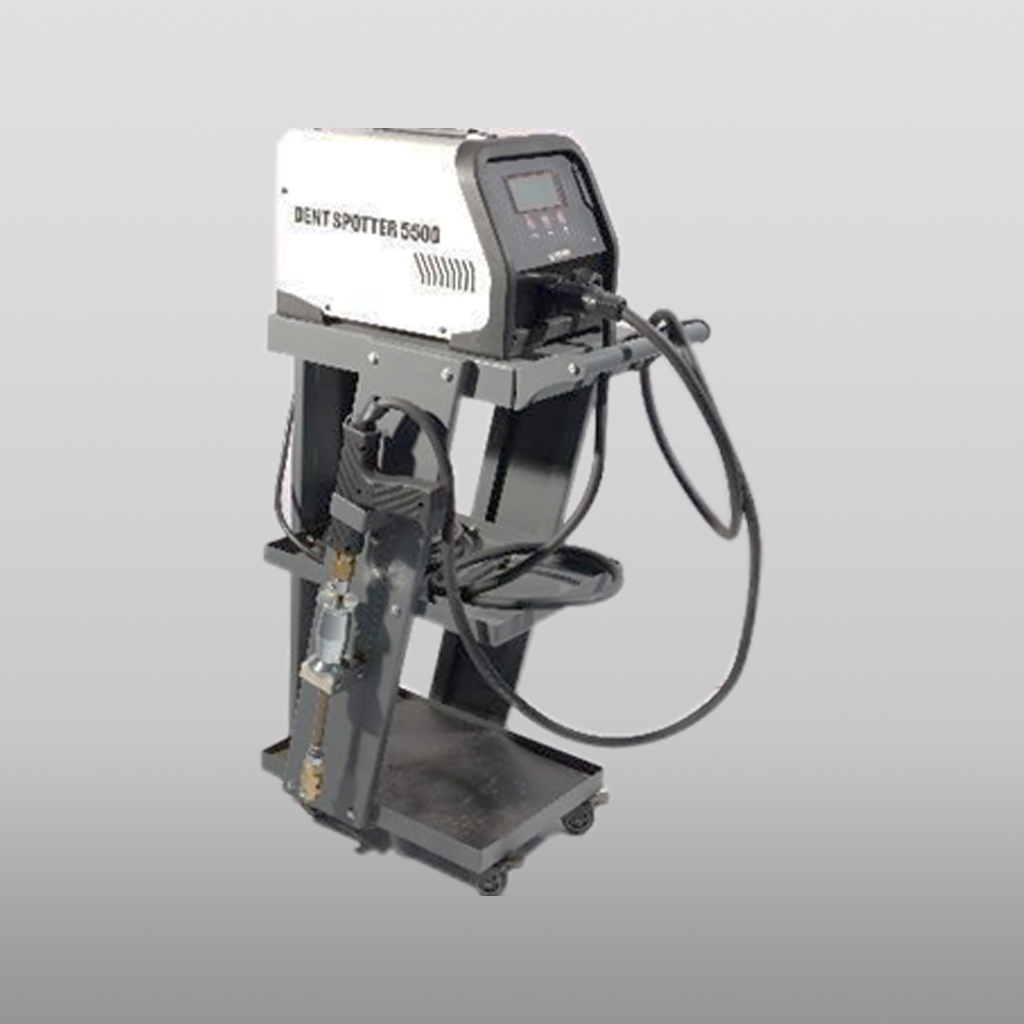

INTELLI DENT PULLER 5500

ApplicationsFeaturesAdvantagesSpecificationsCatalogueRequest a Quote
  • Suitable for all models of passenger cars
  • SUV and MPV
  • Automatic choice of the welding parameters
  • Enabled with automatic triggering
  • ONE TOUCH LCD
  • Possibility of varying the welding time compared to the value selected automatically
  • Backlit LCD display that shows the controls and the set parameters
  • Specific programme for welding of the earth to the sheet metal to repair
  • Spot welding of Plugs, Screws, Rivets, Washers, Slotted washers and bits for special traction with specific hammers
  • Sheet tempering with the carbon electrode
  • Sheet upsetting with the relative electrode
  • Thermostatic safeguard
  • Remove dent without disassembling vehicle fittings
  • Improved efficiency
  • Increased productivity
  • Reduce Downtime
  • Better surface finish
  • Quick Delivery
PARAMETER SPECIFICATIONS
Input supply 2 PH, 400V, 50 Hz
Peak spot-welding current 3800 A
Maximum Absorbed Power 10.5 kW
Protection Degree IP 22
Unit dimensions 390 x 260 x 225 mm
Unit weight with Trolley 37 Kg approx.
