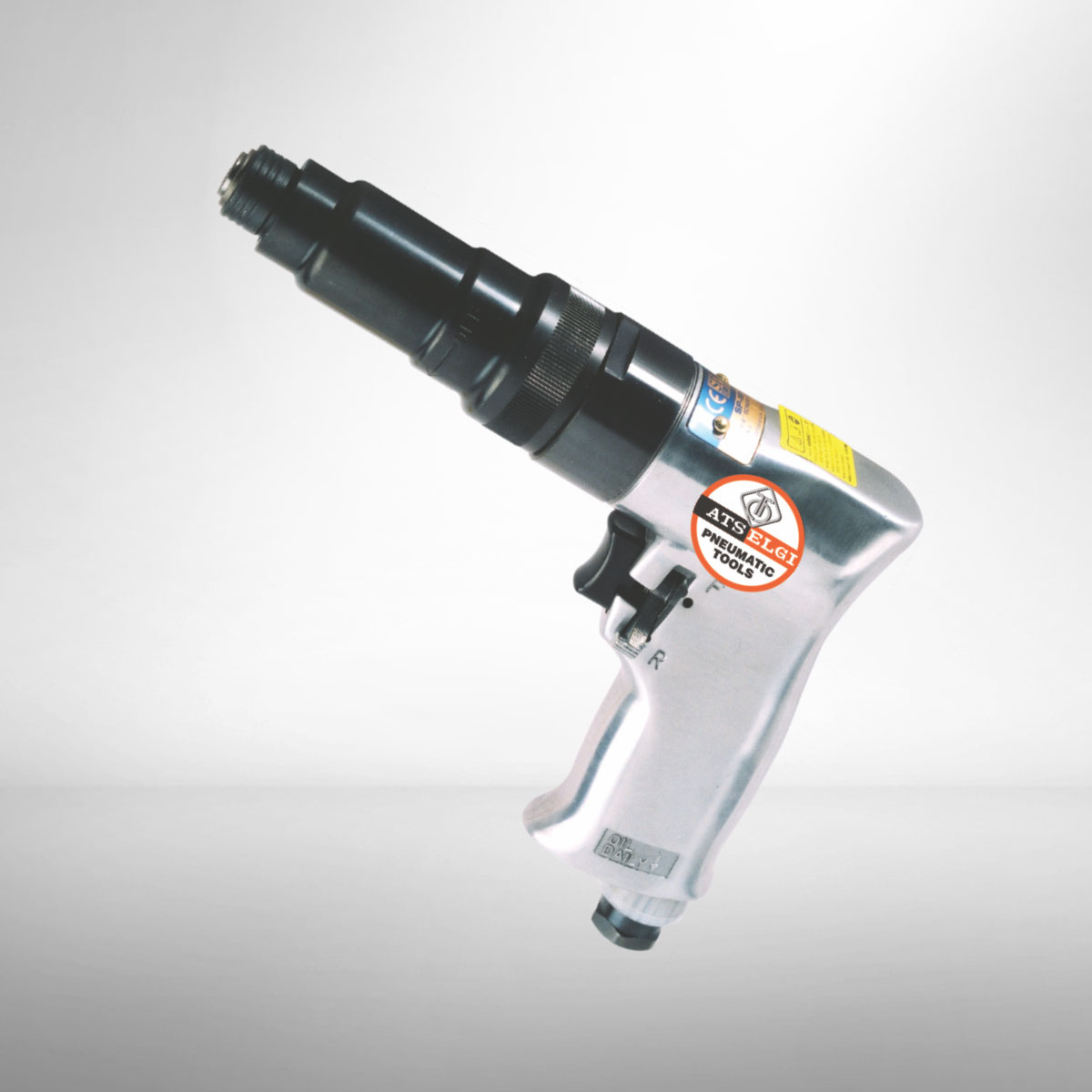

Screw Drivers
ATS ELGI offers a wide range of screw drivers with variable speed and torque controlled. These screw drivers meet the need for every kind of screw-fastening in the assembly line in electronics, white goods and furniture industries.
ApplicationsSpecificationsKey FeaturesBenefitsCatalogueRequest a Quote
- Ideal for wood screws, wall boards and assembly line works.
| Model | Working Torque | ChuckHex Size | Screw Capacity | Handle | Free Speed | Net wt | Min. Hose Size | Torque Control |
|---|---|---|---|---|---|---|---|---|
| Nm | inch(mm) | mm | rpm | kg | inch (mm) | |||
| JAB 0401 | 1.12-3.38 | 1/14(6.35) | M4 | Straight | 1500 | 0.65 | 1/4″ | Internal |
| JAB 0402 | 2.25-5.08 | 1/14(6.35) | M5 | Straight | 1800 | 0.65 | 1/4″ | Internal |
| SP 1800 | 5-15 | 1/14(6.35) | M6 | Straight | 1800 | 1.0 | 3/8 (10) | Internal |
| SP 1800A | 5-13.6 | 1/14(6.35) | M6 | Straight | 1800 | 1.25 | 3/8 (10) | External |
| SP 1810 | 5-34 | 1/14(6.35) | M6 | Pistol | 2200 | 1.1 | 3/8 (10) | Internal |
| SP 1800A | 11-17 | 1/14(6.35) | M6 | Pistol | 2200 | 1.1 | 3/8 (10) | External |
| SP 1812 | 5-29 | 1/14(6.35) | M6 | Pistol | 800 | 1.3 | 3/8 (10) | External |
- Light and compact.
- Single hand reverse button.
- Adjustable clutch units.
- Air strainer.
- Lever throttle.
- Suspension bail.
- Handy to operate.
- Easy for operation.
- Reduced exhaust noise.
- Speed control.
- Easy assembly work.
