SOLUTIONS FOR DRYING WATER BORNE PAINTS

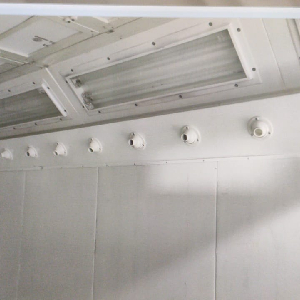

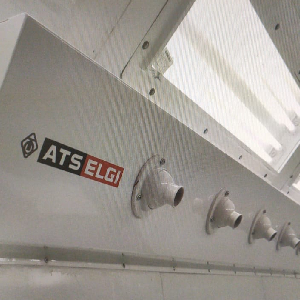

There is obvious drift in the automotive paints from the usage of solvent borne paints to water borne paints . Although the water borne paints reduces VOC (volatile organic compound) emissions , but it takes longer drying time than solvent based paints. ATS ELGI smart dry reduces the drying time of water borne paints by creating a turbulent air flow on the painted surface which breaks down the slow moving boundary air and quickens the drying process.
Model : Horizontal Velocity Dry
ApplicationsFeatures & BenefitsSpecificationsCatalogueRequest a Quote
- Drying of water borne paints
- Low Power Consumption – 0.25 kw/each tower
- Automatic opening & closing of doors
- Certified Flame Proof Motor
- 10 Micron pocket filters

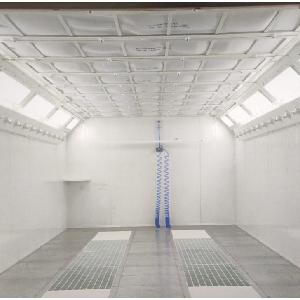

- Can be integrated with any models of paint booth
- Better finish
| S.No | Specifications | SmartDry |
|---|---|---|
| 1 | Overall dimensions (L XB X H) | 500 X 425 X 2075 mm |
| 2 | Input Supply | 3 Phase, 415 V , 50 Hz |
| 3 | No. of Nozzles | 8 |
| 4 | Air Flow / Nozzle | 59 CFM |
| 5 | Average air velocity / Nozzle | 21.4 m/s |
| 6 | Filter media size | 10 Micron |
| 7 | Impeller type | Centrifugal with backward curve |
| 8 | Type of motor | Flame proof |
| 9 | Motor Power | 0.25 KW |
| 10 | Required air pressure | 3-5 kg/cm2 |
| 11 | Working temperature | 0 to 90ºC |
| 12 | Weight (Approx.) | 74 kg |
